NH3 TANK INSPECTIONS

ANHYROUS AMMONIA (NH3) TANK INSPECTION

Internal inspections of anhydrous ammonia tanks should be done on a regular basis. Because pressure relief valves require 5 year replacement or recertification many plants also chose this as the appropriate time to empty the tanks and do a complete internal inspection of the tank  Our on-site ammonia tank inspections take place all over the continental United States.


Working with Phoenix National Labs https://pnltest.com/ we conduct both internal liquid photoluminescent mag particle examinations as well as AP-510 inspections.


Depending on the tank owners, these may take place as often as every five years when pressure relief valves require changing or at a minimum of every ten years to drain oil, remove dirt, and perform weld inspections and thickness examinations.


This is also an excellent time to perform calibrations, root valve or frequently actuated ball valves replacement due to wear and tear of rust and dirt on valve seats.

Anhydrous Ammonia Services Equipment

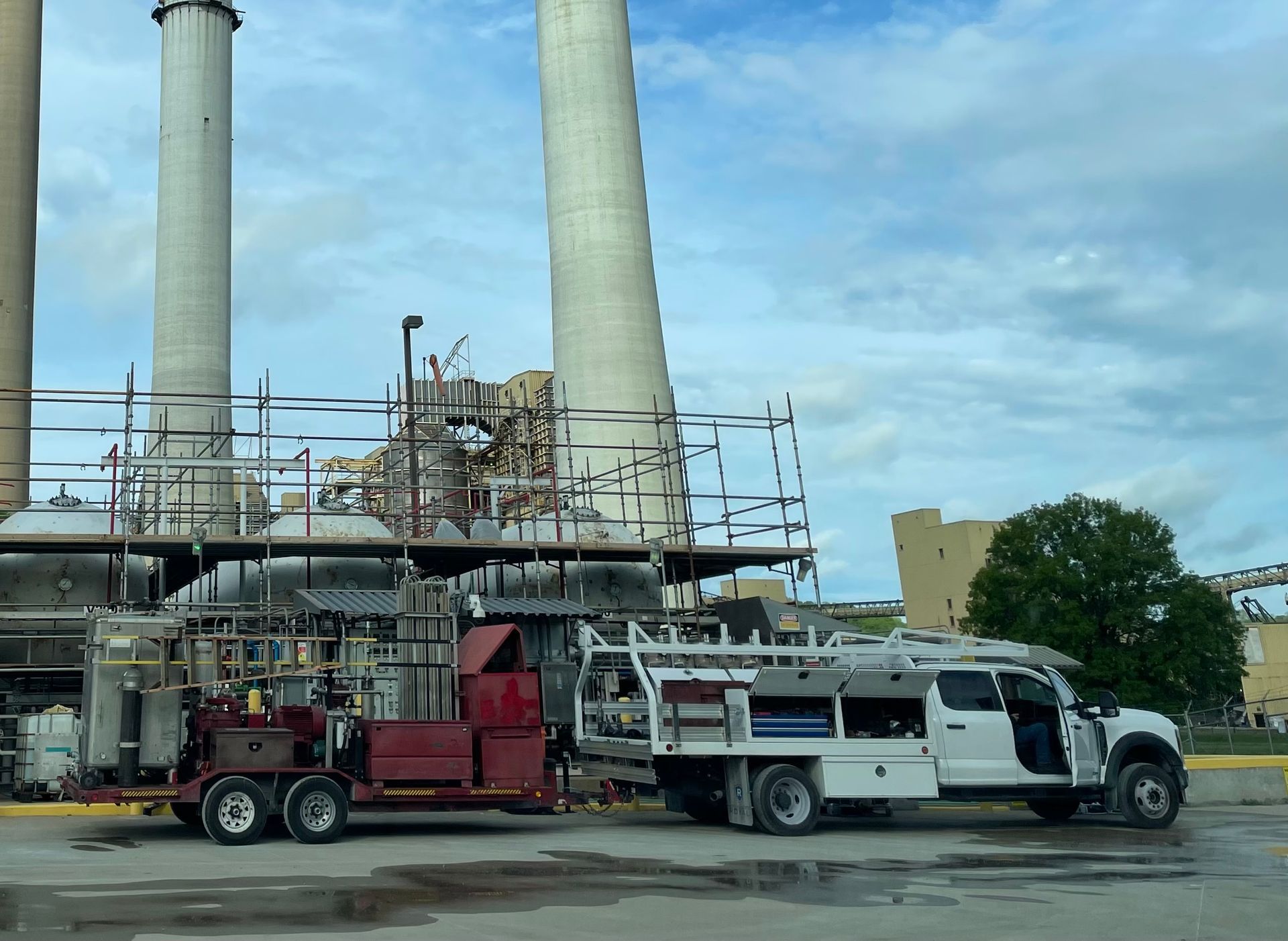

EEServ can dispatch its ammonia service equipment for a variety of needs, from ammonia tank to truck, tank to tank transfer or complete vapor removal and human entry into the tank. EEServ does this and conserves all of the ammonia, generating no EPA reportable waste for the site to handle such as with flaring or sparging the vapors. We capture 99% ammonia vapors and return them to your system as a liquid into one of your other tanks or to a service ammonia tanker truck if required.

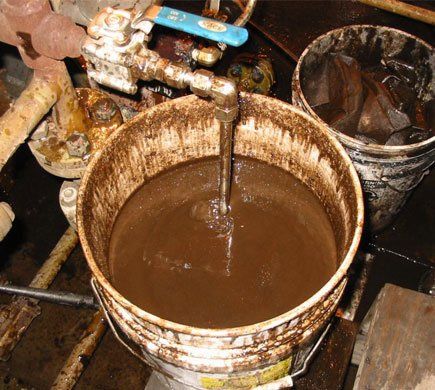

Tank Being Drained

OPENING THE TANK

EEServ has the equipment and experience that allows us to transfer and/or remove ammonia liquid from your tank and then vacuum out the remaining vapors. We can then safely open the tank and allow NDT personnel to inspect the internal surfaces of the tanks. This is the most reliable and trustworthy type of examination for stress corrosion cracking. We can also provide AP-510 inspections as well


CLICK THE LINK BELOW FOR MORE INFORMATION ON CRACKING IN ANHYDROUS AMMONIA TANKS!

THE NATIONAL BOARD OF BOILER AND PRESSURE VESSEL INSPECTORS

SAFETY FIRST

EEServ's first concern is safety and controls its own confined space program. We check the gas levels in the tank prior to each new entry and provide continuous monitoring during internal inspections. We use our own posted, dedicated hole watch that controls the space and entry to it and is in communication with the inspection team in the tank.

INSIDE THE TANK

Upon entry, the tank is inspected for dirt, oil, and other debris. If required, we may ask that the tank is cleaned prior to inspection. We then perform an NDT inspection for small cracks along the weld seams using photoluminescent magnetic particles. This is followed by a UT inspection to check for shell thickness. We always use our certified NDT lab and inspectors for the inspections.

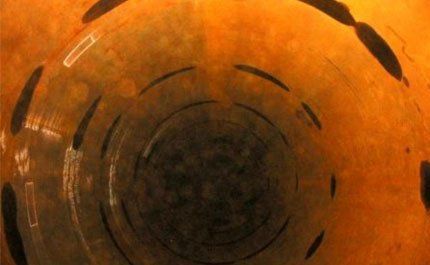

Ammonia Tank Inspection in Temecula, CA

UP TO CODE

We are an ASME code shop, so you can be certain we have the expertise to correctly identify and correct vessel maintenance issues and return the tank to service with minimal interruptions. We take ammonia tank inspections seriously to provide you with safe, tested and inspected equipment.
